More Open Source A5 Designs--Alpine Pack and Astro Pack
« on: May 11, 2011, 01:59:18 am »



Materials:
ALPINE PACK  (batches of 4)

1" FLAT WEBBING
(16) 4 @ 3"
(8) 2 @ 7"
(16) 4 @ 23"  front and shoulder straps
(16) 4 @ 16"  sides
(12) 3 @ 25"  wings and ice axe loops
(4) 1 @ 18"  **cut one end at angle**  sternum strap (male)
(4) 1 @ 12"  **cut one end at angle**  sternum strap (female)

1" TUBULAR WEBBING
(8) 2 @ 34"  **mark 11" from one end, 8" from other end**

1 1/2" FLAT WEBBING
(8) 2 @ 22"  waistbelt

3/4" TUBULAR WEBBING
(4) 1 @ 9"  clip in handle

3/8" FOAM:
(4) 1 back stiffener/padding

1/4" FOAM:
(8) 2 shoulder straps

BALLISTICS (all same color):
(4) 1 top piece
(4) 1 bottom **1 cut**
(4) 1 front
(4) 1 **flip flop pair**  shoulder straps

OXFORD CLOTH (any color):
(4) 1 inside back
(4) 1 **flip flop pair**  inside pockets

PACKCLOTH (color combinations are in A/B & black color scheme):
ANY COLOR: (4) 1 inside pocket
       (4) 1 **flip flop pair** shoulder straps
BLACK:  (4) 1 back piece  (truncated equilateral triangle)
      (4) 1 back piece
      (4) 1 zipper/top flap  **mark line on coated side**
COLOR A: (8) 2 **flip flop pairs** (truncated right triangle)
       (8) 2 **flip flop pairs** other small piece
       (4) 1 **flip flop pair** front panels
COLOR B: (4) 1 **flip flop pair**  side bottoms  **2 marks non-coated side**
       (4) 1 zipper piece front/top  **5 cuts**

INSTRUCTION MANUAL:
http://www.deuce4.net/web/Alpine/AlpinePack.pdf

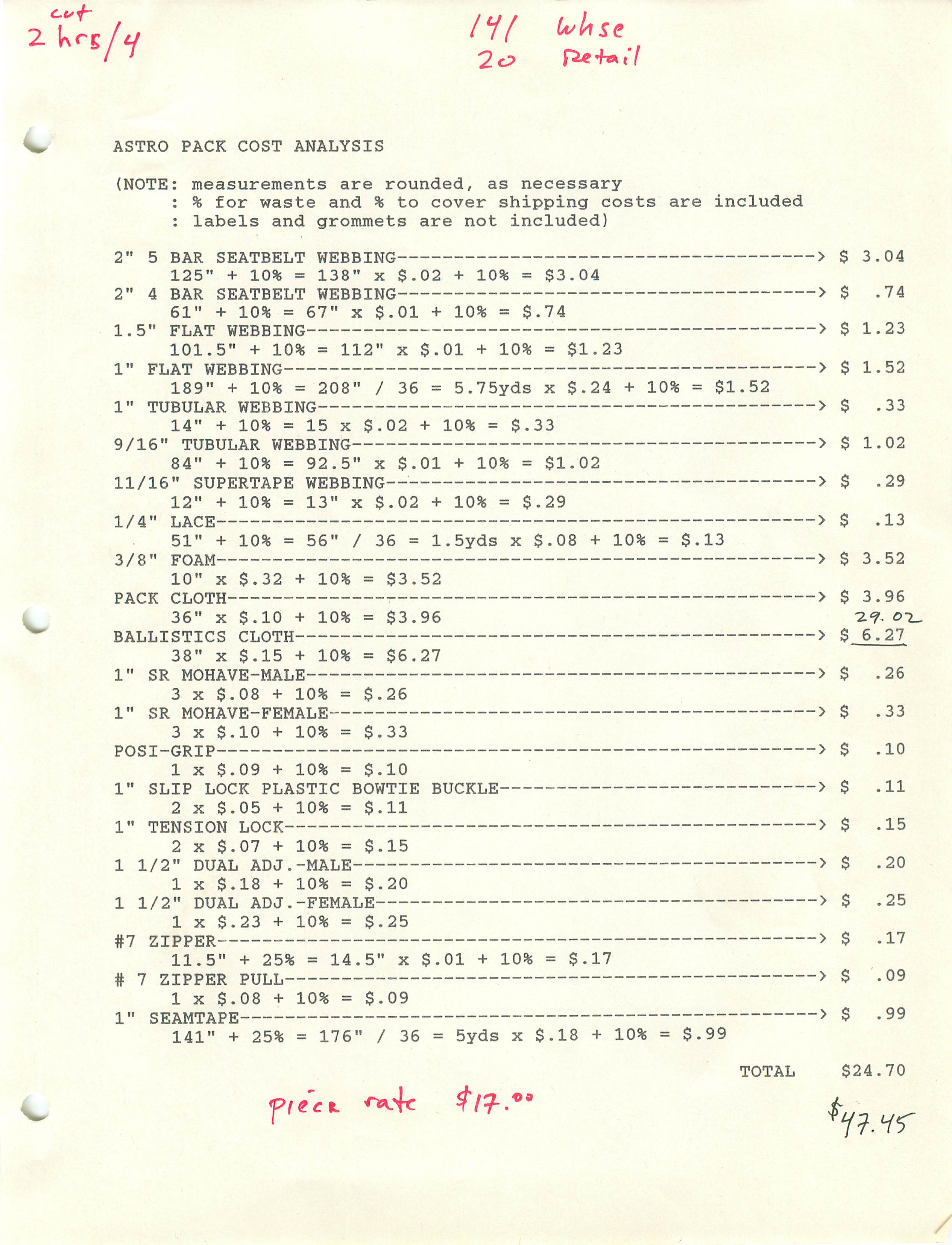

Cost Sheet:

« Last Edit: May 11, 2011, 02:03:27 am by deuce4 »
-------
Thanks for visiting the Big Walls Forum!!
John Middendorf

Offline deuce4

  • The Deuce
  • Administrator
  • A3+ Copper Bender
  • *****
  • Posts: 182
    • View Profile
    • http://www.bigwalls.net
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #1 on: May 11, 2011, 02:05:49 am »

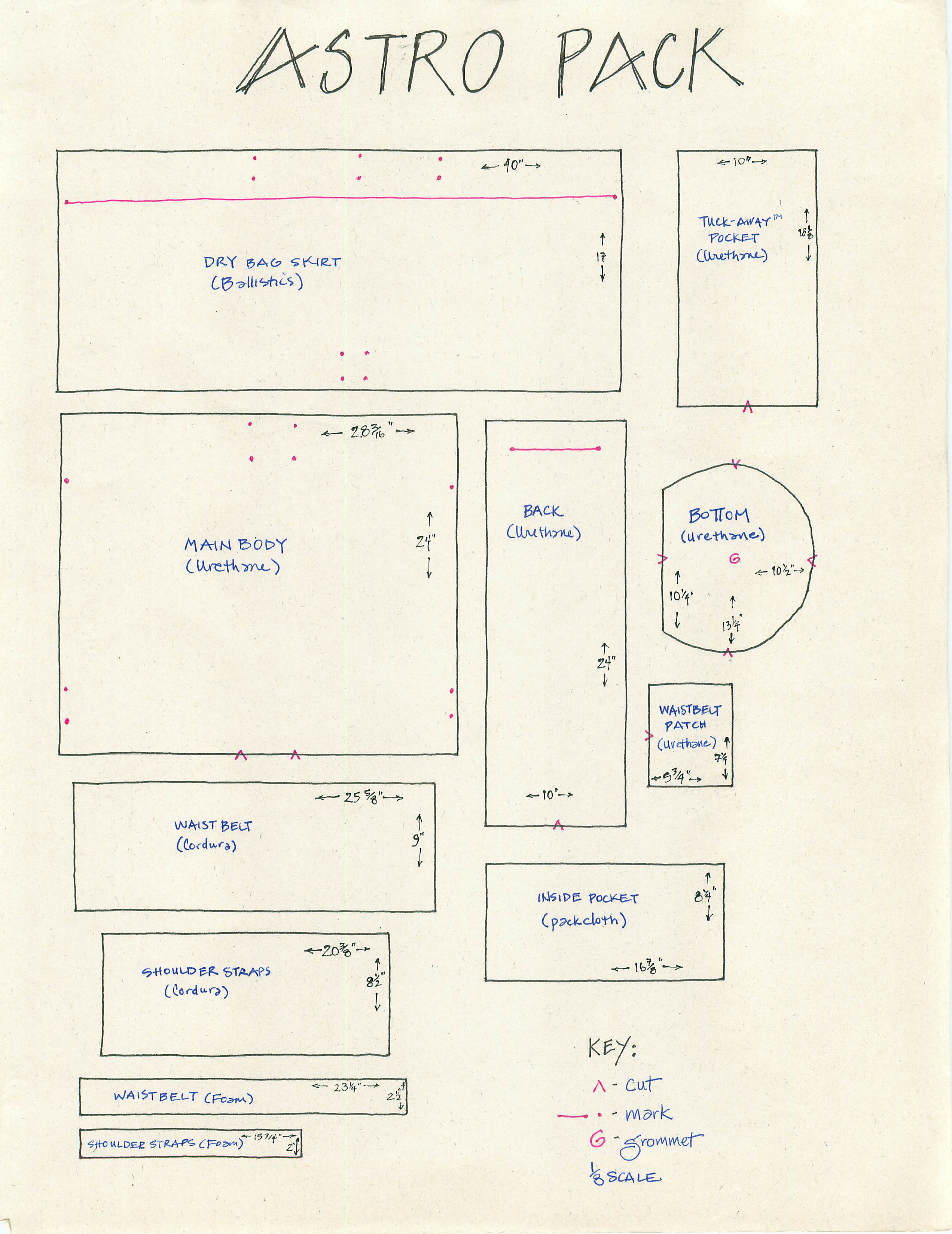

ASTRO PACK:



ASTRO PACK  (batches of 4)

2" 5 BAR SEATBELT WEBBING
(4) 1 @ 78"  haul strap
(4) 1 @ 47"  **mark at 9"**  haul strap

2" 4 BAR SEATBELT WEBBING
(4) 1 @ 40"  bottom scuff
(8) 2 @ 10.5"  shoulder straps scuff

1.5" FLAT WEBBING
(4) 1 @ 51"  waistbelt
(4) 1 @ 40"  bottom scuff
(4) 1 @ 10.5"  belt scuff guard

1" FLAT WEBBING
(8) 2 @ 31"  **cut one end at angle**  shoulder attachments
(8) 2 @ 21"  shoulder straps
(4) 1 @ 19"  lid strap (male)
(4) 1 @ 6"  lid strap (female)
(4) 1 @ 18"  **cut one end at angle**  sternum strap (male)
(4) 1 @ 12"  **cut one end at angle**  sternum strap (female)
(4) 1 @ 30"  rope strap on lid

1" TUBULAR WEBBING
(4) 1 @ 14"  bottom clip

9/16" TUBULAR WEBBING
(28) 7 @ 4"  top loops
(4) 1 @ 56"  top pull

9/16" SUPERTAPE WEBBING
(4) 1 @ 5"  center strap
(4) 1 @ 7"  long strap

LACE:
(4) 1 @ 51"  drawstring

3/8" FOAM:
(4) 1 waistbelt
(8) 2 shoulder straps
(4) 1 back piece

PACKCLOTH:
(4) 1 skirt  **grommet sm. webb. reinf. on noncoated side**  **two cuts**
(4) 1 pocket
(4) 1 waistbelt
(8) 2 shoulder straps
(4) 1 larger lid piece
(4) 1 smaller lid piece (to make pocket)
(4) 1 strip to make lid pocket zipper flap
(4) 1 small rectangle to make cover for foam pocket
(4) 1 back piece

BALLISTICS CLOTH:
(4) 1 main body piece  **14 marks, two cuts**
(4) 1 small waistbelt patch  **one cut**
(4) 1 bottom  **two marks, three cuts**
(4) 1 back piece  **one cut**
(4) 1 back piece  **mark one line, one dot, 3 cuts**

INSTRUCTION MANUAL:
http://www.deuce4.net/Astro/AstroPack.pdf


« Last Edit: May 11, 2011, 02:08:18 am by deuce4 »
-------
Thanks for visiting the Big Walls Forum!!
John Middendorf

Offline YetAnotherDave

  • A3+ Copper Bender
  • *****
  • Posts: 157
    • View Profile
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #2 on: May 11, 2011, 11:14:28 am »
Thanks John!

Offline Caz

  • A4+ Dreamer
  • *****
  • Posts: 520
    • View Profile
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #3 on: May 11, 2011, 12:09:11 pm »
Good stuff John!


Do you have plans for the A5 grade VII haul Bag?

I've been looking for one and if I can't find it I want to try and get someone to make it for me...


Zac
I do this for fun...

Offline Mike.

  • Bigwall Shaman
  • A4+ Dreamer
  • *****
  • Posts: 911
    • View Profile
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #4 on: May 11, 2011, 03:16:02 pm »
Very cool, and good of you, D. Thanks.
Say no to limbers, excavators and retro-bolters. No matter how much he smiles.

Offline slabbyd

  • A1 fiend
  • **
  • Posts: 32
    • View Profile
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #5 on: May 11, 2011, 04:26:14 pm »
Thanks so much.  I've made two backpacks now (1 a haulbag and 1 a small pack/rope bucket) and it's interesting to see the order in which someone who knows what they're doing assembles the components.  To make minimum wage I'd have to be selling packs for $750 though.....

Offline mungeclimber

  • Administrator
  • A4+ Dreamer
  • *****
  • Posts: 2257
    • View Profile
    • http://www.sonorapassclimbing.com
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #6 on: May 11, 2011, 05:04:34 pm »
and that's why bw.com rocks yer dome

thx John!  dig the cost break down

Offline hoipolloi

  • A4+ Dreamer
  • *****
  • Posts: 305
    • View Profile
Re: More Open Source A5 Designs--Alpine Pack and Astro Pack
« Reply #7 on: May 17, 2011, 11:50:37 am »
Can we get some photos of these things posted up?  What did the originals look like?  What are you monkeys making and what do they look like?


Keep it up.  Awesome JM is sharing these plans!
