Open Source A5 HaulPack and Grade VII Haulbag
« on: May 11, 2011, 08:19:51 pm »

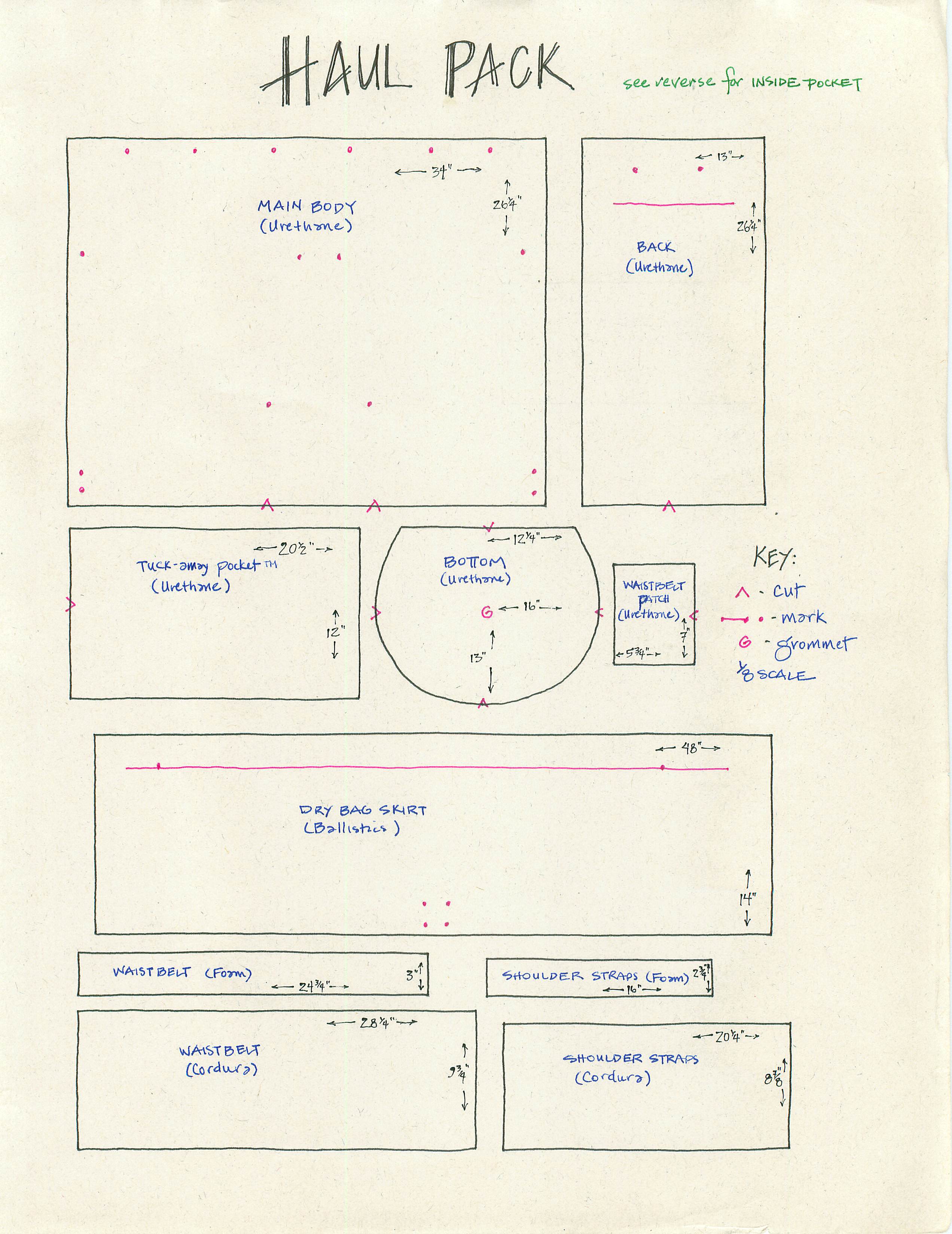

HAULPACK



Manual:
http://www.deuce4.net/web/Haul/haulpack.pdf

HAULPACK  (batches of 4)

2" 5 BAR SEATBELT WEBBING
(4) 1 @ 50"  **mark at 9"**
(4) 1 @ 88"  (44" x 2)
(8) 2 @ 12.5"
(4) 1 @ 17"

2" 4 BAR SEATBELT WEBBING
(4) 1 @ 47"

1.5" FLAT WEBBING
(4) 1 @ 47"
(4) 1 @ 52"  waistbelt
(4) 1 @ 12.5"

1" FLAT WEBBING
(8) 2 @ 32"  **cut angle at one end**
(8) 2 @ 23"
(8) 2 @ 14"  **cut angle at one end**
(4) 1 @ 17"
(4) 1 @ 19"
(12) 3 @ 6"
(4) 1 @ 12"  **cut angle at one end**  sternum strap (female)
(4) 1 @ 18"  **cut angle at one end**  sternum strap (male)

3/4" FLAT WEBBING
(8) 2 @ 18"

9/16" TUBULAR WEBBING
(4) 1 @ 60"
(32) 8 @ 4.5"
(4) 1 @ 6"

SUPERTAPE WEBBING  (can use scrap and narrow is best)
(8) 2 @ 5"  inside of handles
(4) 1 @ 9"  inside of handles

3/8" FOAM:
(4) 1 waistbelt
(8) 2 shoulder straps

PACKCLOTH:
(4) 1 waistbelt
(8) 2 shoulder straps

CORDURA CLOTH:
(4) 1 lid  **two cuts**
(4) 1 small and narrow piece  **one cut**
(4) 1 small piece  **one cut**
(4) 1 long narrow piece  **one cut**
(4) 1 long piece  **two cuts**

VINYL:
(4) 1 lid  **two cuts, two marks**
(4) 1 bottom  **four cuts, one grommet/sm. reinf. on rough side**
(4) 1 small waistbelt patch  **one cut**
(4) 1 back piece  **one cut**
(4) 1 pack piece  **three marks, one is long, one cut**  (can cut pieces
with stray marks on large side of line mark, area will be covered)
(4) 1 main body  ** 14 marks, two cuts**



HAULBAG


Manual:
http://www.deuce4.net/web/Haul/Haulbag.pdf


GRADE VI HAULBAG  (batches of 4)


5 BAR SEATBELT WEBBING
(4) 1 @ 119"  (59.5 x 2)  long haul strap
(4) 1 @ 110"  (55 x 2)  short haul strap
(8) 2 @ 21"  bottom strap
(8) 2 @ 15"  shoulder straps scuff

4 BAR SEATBELT WEBBING
(4) 1 @ 58"  top stiffener

1.5" FLAT WEBBING
(4) 1 @ 58"  bottom scuff
(4) 1 @ 52"  waist belt
(4) 1 @ 14.5"  scuff above waist belt

1" FLAT WEBBING
(8) 2 @ 32"  **CUT AT ANGLE**  shoulder strap bottom attachment
(8) 2 @ 23"  shoulder strap top
(4) 1 @ 18"  **CUT AT ANGLE**  sternum (male side)
(4) 1 @ 12"  **CUT AT ANGLE**  sternum (female side)

3/4" TUBULAR WEBBING
(4) 1 @ 10"  scuff side daisy loop

9/16" TUBULAR WEBBING
(40) 10 @ 4"  top pull loops
(4) 1 @ 69"  draw cord for pull loops

9/16" SUPERTAPE WEBBING
(8) 2 @ 6" inside of bottom handles
(8) 2 @ 10" inside of top handles

LACE
(4) 1 @ 69"  draw cord for packcloth skirt

3/8" FOAM:
(4) 1 waist belt
(8) 2 shoulder straps

PACKCLOTH:
(4) 1 waistbelt
(8) 2 shoulder straps (same color)

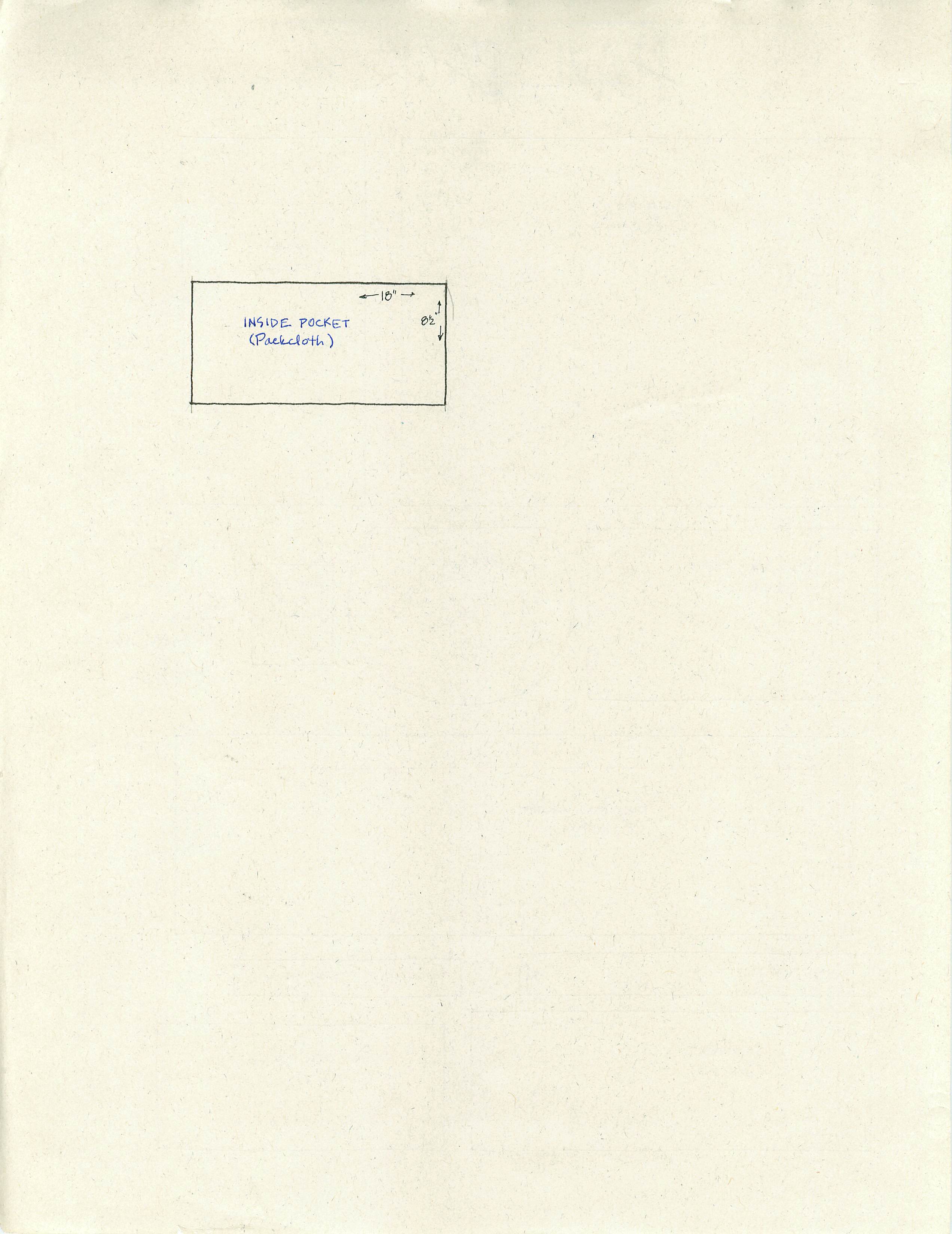

(4) 1 pocket
(4) 1 skirt  **grommet (webbing reinforcement/noncoated side)**

VINYL:
(4) 1 waistbelt patch  **1 cut**  (smallest piece)
(4) 1 bottom  **8 marks, 8 cuts, 1 grommet (reinforcement/rough side)**
(4) 1 back piece  **1 cut**
(4) 1 main body  **9 cuts, 31 marks (includes line)**
-------
Thanks for visiting the Big Walls Forum!!
John Middendorf

Offline Caz

  • A4+ Dreamer
  • *****
  • Posts: 520
    • View Profile
Re: Open Source A5 HaulPack and Grade VII Haulbag
« Reply #1 on: May 11, 2011, 08:28:40 pm »
Awesome!
I do this for fun...

Offline Garbonzo

  • A4+ Dreamer
  • *****
  • Posts: 358
    • View Profile
Re: Open Source A5 HaulPack and Grade VII Haulbag
« Reply #2 on: May 12, 2011, 11:23:36 am »
Awesome, I would in the process of scrounding up pictures of the haul-pack so i could make one.  I got ahold of 9 yards of 40 oz urethane and I'm itching to justify it...
