double ledge info
« on: January 16, 2006, 08:58:56 pm »

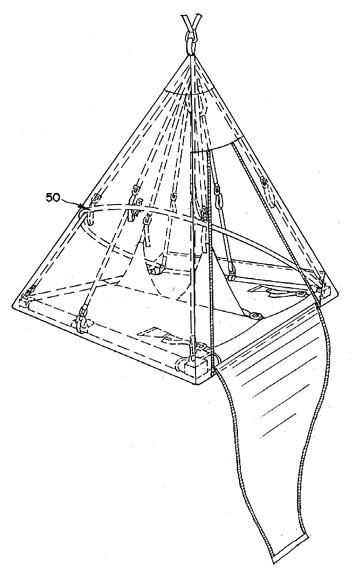

Since the double ledge is a goner, no longer in production and abandoned, and IMHO the best combination of size to compactness/weight, here's some info if you want to build your own.  Expect to spend at least $300 for time and materials.

Not complete, but more info on size can be garnered from old A5 catalogs. Some information is assumed, like the #10 YKK zippers that we used in all our stuff, and stainless steel sliders (more for durability than for corrosion).  Seam tape is also not mentioned in the material list, below.

The tubing is 6061-T6 1.125 inch outside diameter, 0.058 inch wall thickness.  Joining sections are 1" OD, 0.083" wall thickness.  Such tubing is also used frequently from hang gliding shops and can be bought in small quantities.  Corners were 1.375 inch square stock cut to 2.1 inch lengths, then the holes milled. All this from memory, but believe it is correct.

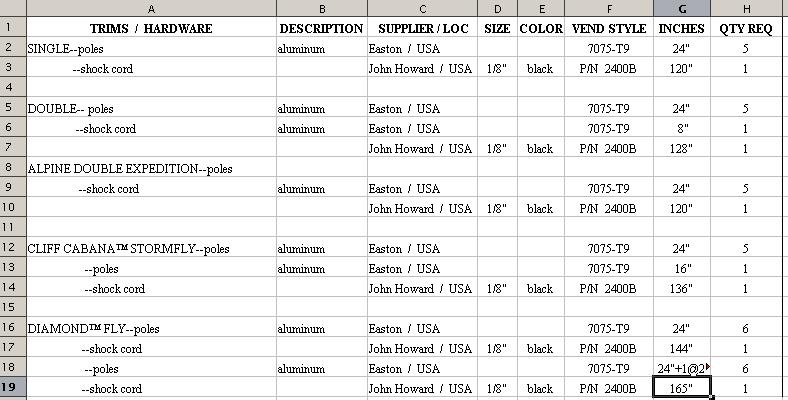

Also, for the tent pole fly entender:



Materials list:

DOUBLE LEDGE BED   (batches of 4)

1" FLAT WEBBING
(8) 2 @ 38"  **cut angle at one end**  middle triangle
(24) 6 @ 21"  **cut angle at one end**
(24) 6 @ 15"  bed

WEBBING REINFORCEMENTS (made with scraps):
small is two layers of 1" cut square and hole punched in center
large is 2" seatbelt webbing cut 4" long and hole is punched

PACKCLOTH (do not use black for main piece):
(4) 1 main piece  **2 grommets, small and large webb. reinf.
   stacked on coated side**  **long marks: 1 diagonal with
   dots, 1 along each side**
(8) 2 **flip flop pairs** sharkfins  (black is a good color)
(32 individual pieces) 4 pair large tensioners (triangles)
(16 individual pieces) 2 pair small tensioners (triangles)

BALLISTICS CLOTH
(8) 2 scuffs  (symmetrical piece)
(4) 1 *flip flop pair** scuff  (one end is narrower than other)

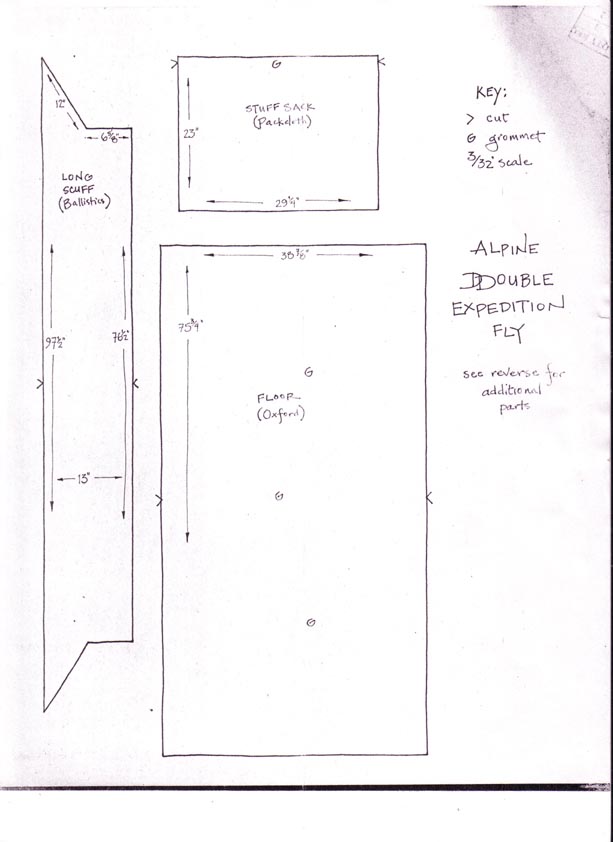

DOUBLE LEDGE FLY  (batches of 4)

PACKCLOTH:
(4) 1 cone
(4) 1 stuff sack  **grommet with webb. reinf. on noncoated side**

OXFORD CLOTH:
(4) 1 long narrow piece

CLAY COAT OXFORD CLOTH:
(4) 1 main body piece  **two cuts**

BALLISTICS CLOTH:
(4) 1 large scuff  **two cuts**
(4) 1 **flip flop pair** scuff with angled edge  (can be odd color)
(8) 2 collar pieces
(4) 1 **flip flop pair** chimney piece  (can be odd color)
(8) 2 small triangles  (can be odd color)

DOUBLE LEDGE HAUL BAGS (stuff sacks)  (batches of 18)

1/2" TUBULAR (or 9/16) WEBBING
(18) 1 @ 35"
(108) 6 @ 4"

1" TUBULAR WEBBING
(36) 2 @ 26"

1" FLAT WEBBING
(18) 1 @ 28"

CORDURA FABRIC
(18) 1 body piece **10 marks**
-------
